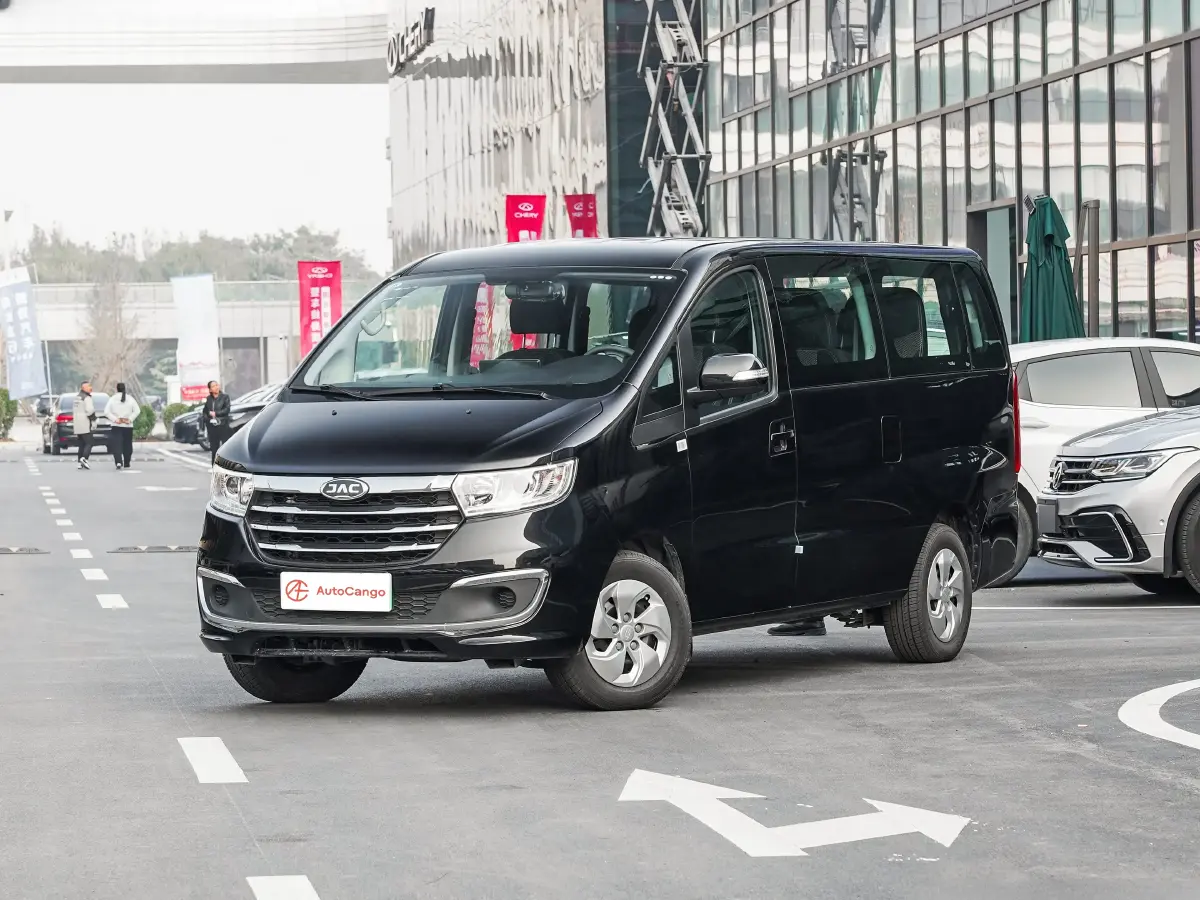

2025 JAC Refine RefineM3 PHEV 2.0L 136HP L4 PHEV 17.52KWH

Brand

JAC Refine

Series

RefineM3 PHEV

Manufacturer

JAC Refine

Model

2025 JAC Refine RefineM3 PHEV 2.0L 136HP L4 PHEV 17.52KWH

MSRP

132900.00

Launch Time

2024.11

Class

Compact MPV

Fuel Type

PHEV

Frame Structure

Unibody

Body Structure

MPV

Doors

4

Seats

8

Body Type

4doors 8seats MPV

Top Speed(km/h)

130

Emission Standard

CHN VI

Battery Type

Ternary Lithium Battery（NCM）

Battery Capacity (kWh)

17.52

Electricity Consumption (kWh/100Km)

16.1

Battery Cell Brand

Gotion High-Tech

Fast Charging Function

Supported

CLTC Range (km)

85

Battery Cooling Method

Liquid cooling

CLTC Range(km)

85

WLTC Range (km)

63

WLTC Range(km)

63

Front Brake Type

Ventilated Disc

Rear Brake Type

Disc

Parking Brake Type

Electric Parking Brake

Aircondition Control

Manual

Multimedia/Charging Interface

USB

Usb/Type-C Interface Quantity

Front1/Rear3

Key Type

Remote key

Length(mm)

5145

Width(mm)

1765

Height(mm)

1900

Body Wheelbase(mm)

3110

Front Track(mm)

1500

Rear Track(mm)

1475

Minimum Ground Clearance(mm)

130

Dimension

5145*1765*1900

Approach Angle(°)

18

Departure Angle(°)

16

Exterior Rearview Mirror Function

Electric Adjustment
Heating

One Touch Window Control

Front Seats

Sliding Door Form

Right side manual

Vanity Mirrors

Passenger Seat

Rear Wiper

○

Door Opening Style

Front hinged doors+Side sliding doors

Drive Mode

Front-Engine
Rear-Wheel Drive

Driving Mode Switch

Sport
Eco
Standard/Comfort

Satellite Navigation System

○

Drive Assistance Image

○Backup view

Navigation Traffic Info Display

○

Number Of Ultrasonic Radars

4

Cruise Control System

Cruise Control System

Motor Type

Permanent-magnet Synchronous Motor

Total Motor Power (kW)

130

Total Motor Torque (N·m)

320

Electric Motor(Ps)

177

Rear Motor Maximum Power (kW)

130

Rear Motor Maximum Torque (N·m)

320

Number Of Motors

1

Motor Layout

Rear

Emission Standard

CHN VI

Maximum Power(kW)

100

Maximum Torque(N·m)

175

Engine Model

LJM20A

Displacement (mL)

1999

Displacement (L)

2.0

Engine

2.0L 136HP L4

Intake Form

Normally Aspirated

Cylinder Arrangement Form

L

Number Of Cylinders

4

Number Of Valves Per Cylinder

4

Valve Mechanism

DOHC

Maximum Horsepower (Ps)

136

Fuel Label

92#

Fuel Supply Mode

Multi-point injection

Cylinder Head Material

Aluminum Alloy

Cylinder Block Material

Aluminum Alloy

Maximum Net Power(Kw)

92

WLTC Fuel Consumption(L/100km)

2.33

Number Of Speakers

2Speakers

Low Beam

Halogen

High Beam

Halogen

Front Fog Lights

○Halogen

Lane Departure Warning System

○

Dashcam

○

Lcd Console Screen

○LCD Touch Screen

Console Screen Size(inch)

○10.25inches

Speech Recognition Control System

○Multimedia System,○Navigation,○Phone

Driving Computer Display Screen

Monochrome

Lcd Dashboard Size

3.5inches

Seat Material

●Fabric
○Artificial leather

Driver Seat Adjustment

Forward/Backward Adjustment
Backrest Adjustment

Passenger Seat Adjustment

Forward/Backward Adjustment
Backrest Adjustment

Seat Layout

2-3-3

Rear Seats Folding Form

Split-folding

Steering Wheel Material

●Plastic
○Leather

Steering Wheel Adjustment

Manual

Multi-Functional Steering Wheel

○

Power Steering Type

Electric Power Steering

Shifting Form

Mechanical gear lever shift

Front Suspension Type

Double wishbone independent suspension

Rear Suspension Type

Dependent suspension

Bluetooth/Car Phone

○

4G/5G Network

4G

Mobile App Remote Control

○Vehicle diagnosis

Rim Material

●Steel
○Alloy

Front Tire Specs

205/65 R15

Rear Tire Specs

205/65 R15

Spare Tire Specs

Tire Repair kit

Number Of Gears

1

Transmission Type

AT

Transmission Abbreviation

SST

Transmission

EV Single-speed Transmission

Fuel Tank Capacity(L)

55

Curb Weight(kg)

1985

Maximum Laden Mass(Kg)

2660
