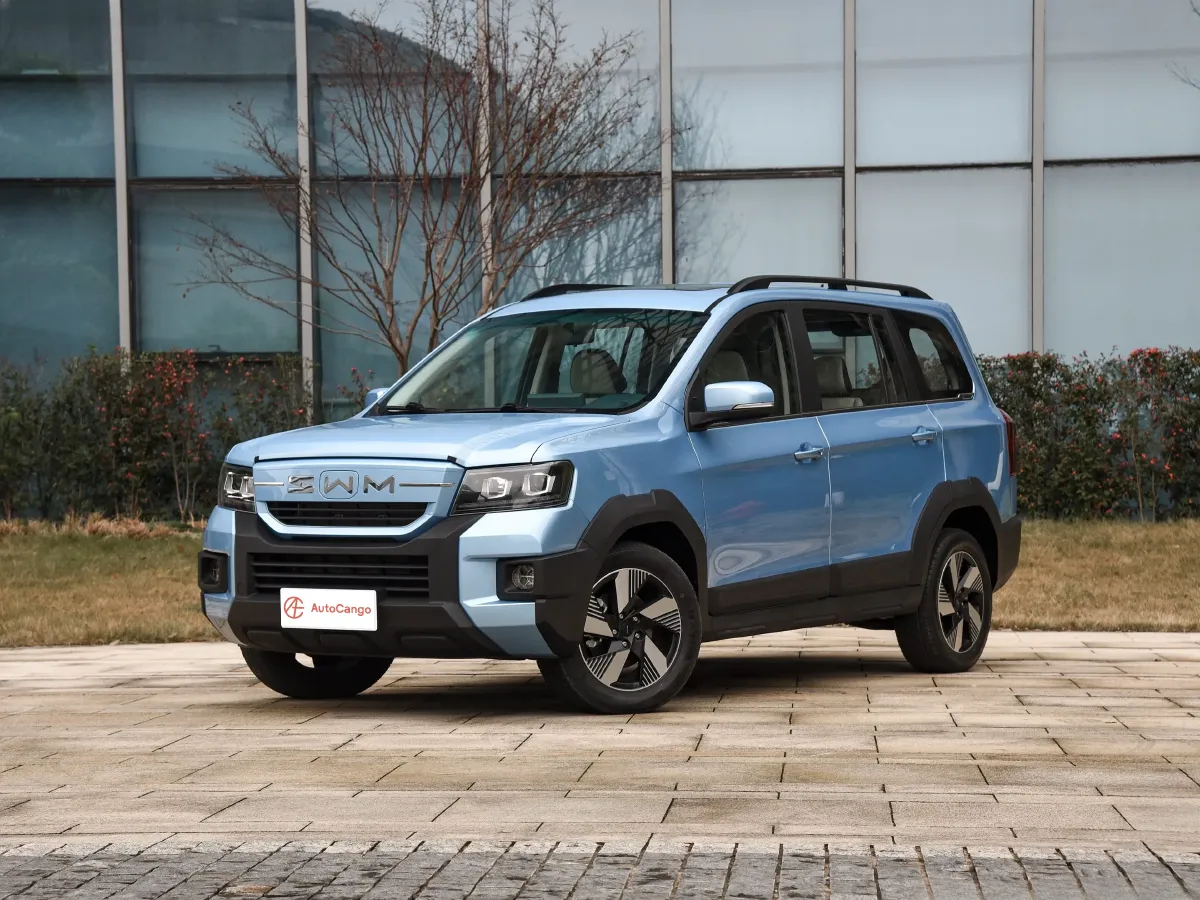

2023 SWM Big Tiger EDi 1.5L 102HP L4 REEV 8.8KWH

Brand

SWM

Series

Big Tiger EDi

Manufacturer

SWM

Model

2023 SWM Big Tiger EDi 1.5L 102HP L4 REEV 8.8KWH

MSRP

139900.00

Launch Time

2023.10

Class

Mid-size SUV

Fuel Type

REEV

Frame Structure

Unibody

Body Structure

SUV

Doors

5

Seats

7

Body Type

5doors 7seats SUV

Top Speed(km/h)

155

Emission Standard

CHN VI

Maximum Power(kW)

105

Maximum Torque(N·m)

210

Slow Charge Time(H)

3.5

Battery Type

Lithium Iron Phosphate Battery（LFP）

NEDC Range (km)

51

Battery Capacity (kWh)

8.8

Electricity Consumption (kWh/100Km)

11.3

External Discharge

○

Battery Cell Brand

Svolt

Battery Cooling Method

Unspecified

Equivalent Fuel Consumption Of Electricity(L/100km)

1.28

WLTC Range (km)

46

WLTC Range(km)

46

NEDC Range(km)

51

Front Brake Type

Ventilated Disc

Rear Brake Type

Disc

Parking Brake Type

Electric Parking Brake

Aircondition Control

Manual

Interior Rearview Mirror Function

Manual Dim

Multimedia/Charging Interface

USB

Usb/Type-C Interface Quantity

Front1

Key Type

Remote key

Keyless Entry

Main Seat

Length(mm)

4605

Width(mm)

1815

Height(mm)

1825

Body Wheelbase(mm)

2780

Front Track(mm)

1526

Rear Track(mm)

1530

Dimension

4605*1815*1825

Approach Angle(°)

24

Departure Angle(°)

26

Front/Rear Power Windows

Front / Rear

Exterior Rearview Mirror Function

Electric Adjustment
Heating

Sunroof Type

Electric Sunroof

Door Opening Style

Front hinged doors

Rear Door Opening Style

Front hinged doors

Drive Mode

Front-Engine
Front-Wheel Drive

Driving Mode Switch

Sport
Eco
Standard/Comfort

Drive Assistance Image

360° surround view

Number Of Cameras

4

Cruise Control System

Cruise Control System

Motor Type

Permanent-magnet Synchronous Motor

Total Motor Power (kW)

105

Total Motor Torque (N·m)

210

Front Motor Maximum Power (kW)

105

Electric Motor(Ps)

143

Front Motor Maximum Torque (N·m)

210

Number Of Motors

1

Motor Layout

Front

Total Motor Power (Ps)

143

Emission Standard

CHN VI

Maximum Power(kW)

75

Maximum Torque(N·m)

126

Engine Model

F31A1

Displacement (mL)

1498

Displacement (L)

1.5

Engine

1.5L 102HP L4

Intake Form

Normally Aspirated

Cylinder Arrangement Form

L

Number Of Cylinders

4

Number Of Valves Per Cylinder

4

Valve Mechanism

DOHC

Maximum Horsepower (Ps)

102

Fuel Type

REEV

Fuel Label

92#

Fuel Supply Mode

Multi-point injection

Cylinder Head Material

Aluminum Alloy

Cylinder Block Material

Unspecified

Engine Layout

Transverse

Maximum Net Power(Kw)

70

WLTC Fuel Consumption(L/100km)

2.06

Minimum State Of Charge Fuel Consumption(L/100Km)

5.5

Number Of Speakers

4Speakers

Low Beam

Halogen

High Beam

Halogen

Driver/Passenger Airbags

Driver Seat / Passenger Seat

Tire Pressure Monitoring

Low Pressure Warning

Seatbelt Reminder

Main Seat

Lcd Console Screen

LCD Touch Screen

Console Screen Size(inch)

10.25inches

Driving Computer Display Screen

Color

Lcd Dashboard Size

7inches

Seat Material

Artificial leather

Driver Seat Adjustment

Forward/Backward Adjustment
Backrest Adjustment
Up/Down Adjustment(2-Way)

Passenger Seat Adjustment

Forward/Backward Adjustment
Backrest Adjustment

Rear Seat Adjustment

Forward/Backward Adjustment
Backrest Adjustment

Seat Layout

2-2-3

Rear Seats Folding Form

One-piece folding

Center Armrest

Front / Rear

Steering Wheel Material

Leather

Steering Wheel Adjustment

Manual

Power Steering Type

Electric Power Steering

Shifting Form

Electronic knob shift

Front Suspension Type

McPherson independent suspension

Rear Suspension Type

Dependent suspension

Mobile Connect

Original Mobile Connect

Rim Material

Alloy

Front Tire Specs

215/60 R17

Rear Tire Specs

215/60 R17

Spare Tire Specs

Tire Repair kit

Number Of Gears

1

Transmission Type

AT

Transmission Abbreviation

SST

Transmission

EV Single-speed Transmission

Battery Pack Warranty

8Yr. / 200000km.

Warranty

3yr. / 60000km.

First Owner Warranty

No time limit

Curb Weight(kg)

1600

Maximum Laden Mass(Kg)

2125
