2010 Zotye JiangNan TT 0.8L 36HP L3 4MT

China Car Specs Library 91MDN

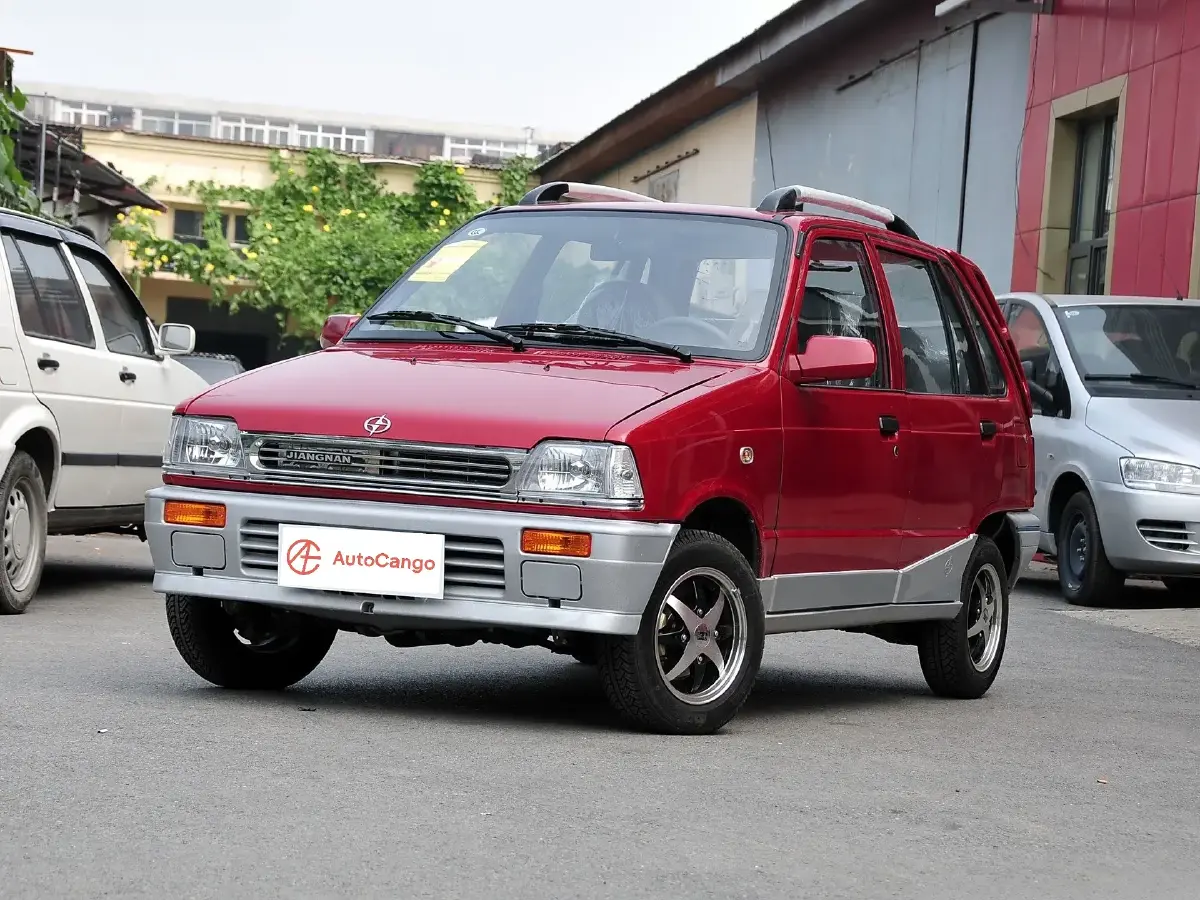

2010 ZOTYE JIANGNAN TT 0.8L 36HP L3 4MT

¥23,800 MSRP

$3,447 MSRP

CST

Inquire Now

WhatsAppWeChatTelegram
Total Price Calculator
EXWFCAFOBCFRCIF

Price Breakdown

+ Vehicle Price ($):3,447

+ Inspection Fee ($):65

+ Export Handling Fee ($):450

+ Domestic Transport Fee ($):0

+ Port Local Fee ($):0

+ AutoCango Service Fee ($):300

+ Banking Transfer Fee ($):50

+ Other Fee ($):0

= Total Price($): EXW 4,312

Only the vehicle price at its location and customs handling cost, without domestic logistics, containerization costs, or international freight. The buyer is responsible for all costs and risks involved in moving the vehicle from the its location to the final destination.

The price in the calculator is an estimated price; for the most accurate and up-to-date pricing, please inquire us.

Model Year

2010

Engine

0.8L 36HP L3

Transm.

MT

Fuel

Petrol

Engine Power(kW)

26.5

Engine Torque(N·m)

60

Engine Intake

Normally Aspirated

Drivetrain

2WD

Basic InfoBasic ParametersBrakesDimensionsEngineSuspensionTires & WheelsTransmissionWeight & Capacity
Brand
Zotye
Series
JiangNan TT
Manufacturer
Zotye
Model
2010 Zotye JiangNan TT 0.8L 36HP L3 4MT
MSRP
23800.00
Launch Time
2010.11
Vehicle Specifications
Basic Info

Brand

Zotye

Series

JiangNan TT

Manufacturer

Zotye

Model

2010 Zotye JiangNan TT 0.8L 36HP L3 4MT

MSRP

23800.00

Launch Time

2010.11

Basic Parameters

Class

Micro Car

Fuel Type

Petrol

Frame Structure

Unibody

Body Structure

Hatchback

Doors

5

Seats

4

Body Type

5doors 4seats Hatchback

Top Speed(km/h)

120

Emission Standard

CHN IV

Maximum Power(kW)

26.5

Maximum Torque(N·m)

60

Brakes

Front Brake Type

Disc

Rear Brake Type

Drum

Parking Brake Type

Hand Brake

Comfort & Convenience

Aircondition Control

Manual

Interior Rearview Mirror Function

Manual Dim

Multimedia/Charging Interface

USB
AUX

Dimensions

Length(mm)

3300

Width(mm)

1405

Height(mm)

1410

Body Wheelbase(mm)

2175

Front Track(mm)

1215

Rear Track(mm)

1200

Dimension

3300*1405*1410

Fully Loaded Ground Clearance(mm)

150

Drivetrain

Drive Mode

Front-Engine
Front-Wheel Drive

Engine

Emission Standard

CHN IV

Maximum Power(kW)

26.5

Maximum Torque(N·m)

60

Displacement (mL)

798

Displacement (L)

0.8

Engine

0.8L 36HP L3

Intake Form

Normally Aspirated

Cylinder Arrangement Form

L

Number Of Cylinders

3

Number Of Valves Per Cylinder

2

Compression Ratio

9.4

Valve Mechanism

SOHC

Maximum Horsepower (Ps)

36

Maximum Power Speed(rmp)

5500

Maximum Torque Speed(rmp)

3000-4000

Fuel Type

Petrol

Fuel Label

92#

Fuel Supply Mode

Multi-point injection

Cylinder Head Material

Aluminum Alloy

Cylinder Block Material

Cast Iron

Fuel Consumption

NEDC Fuel Consumption(L/100km)

5.2

Infotainment

Number Of Speakers

2-3Speakers

Lights

Low Beam

Halogen

High Beam

Halogen

Seats

Seat Material

Fabric

Driver Seat Adjustment

Forward/Backward Adjustment
Backrest Adjustment

Passenger Seat Adjustment

Forward/Backward Adjustment
Backrest Adjustment

Rear Seats Folding Form

One-piece folding

Steering

Power Steering Type

No assistance

Suspension

Front Suspension Type

McPherson independent suspension

Rear Suspension Type

Dependent suspension

Tires & Wheels

Front Tire Specs

145/70 R12

Rear Tire Specs

145/70 R12

Spare Tire Specs

Full Size

Transmission

Number Of Gears

4

Transmission Type

MT

Transmission Abbreviation

4MT

Transmission

4-Speed Manual Transmission

Warranty

Warranty

3yr. / 100000km.

Weight & Capacity

Fuel Tank Capacity(L)

30

Curb Weight(kg)

645
